5/8″ Race Lug Nuts with 30-Degree Conical Seat

Discontinued

Categories: , Tag:

Description

Solo Motorsports 5/8″ Race Lug Nuts are now available in three different sizes, depending on your wheel back-spacing, for 5/8″-18 wheel studs machined out of 1018 1″ bar stock. They have a 30-degree conical seat machined into the wheel side of our lug nut to fit most wheels manufactured today and use a 1″ hex socket. Each 5/8″ Racing Lug Nut is heat-treated and silver zinc-plated to resist corrosion.

Contact us if you have any questions.

Application

  • Measure from the conical seat’s deepest part of the wheel to the face of the wheel to determine the size lug nut required for your application.
  • Torque specs vary based on wheel and application. Always tighten Lug Nuts in star pattern. Retighten regularly.
  • Do not use lubricant on threads.
  • Make sure threads are clean (no aluminum shavings, etc.) to avoid false torque readings resulting in catastrophic failure.
  • Do not use with any kind of wheel spacers.
  • Use 1″ hex socket.

5/8″ Race Lug Nuts Specs

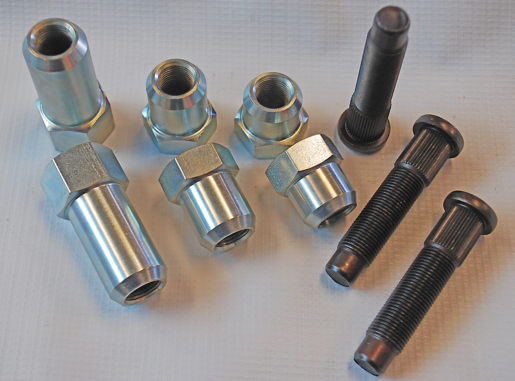

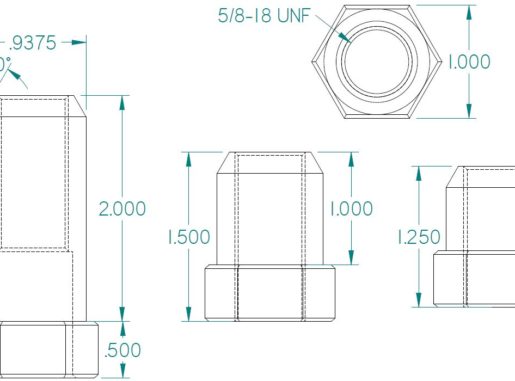

  • Short Lug Nut: 1 1/4″ Overall Length; 5/8-18 Thread; 3/4″ long Smooth Shank; 30 degree conical seat (discontinued)
  • Medium Lug Nut: 1 1/2″ Overall Length; 5/8-18 Thread; 1″ long Smooth Shank; 30 degree conical seat (discontinued)
  • Long Lug Nut: 2 1/2″ Overall Length; 5/8-18 Thread; 1 3/4″ long Smooth Shank; 30 degree conical seat
  • Wheel Stud:  5/8″ x 3″ with a 0.672 Knurl
  • SOLD IN PACKS OF 5

Price

  • Short Lug Nut: $65.00 per pack of 5 (discontinued)
  • Medium Lug Nut: $70.00 per pack of 5 (discontinued)
  • Long Lug Nut: $110.00 per pack of 5
  • Wheel Stud: $55.00 per pack of 5





Follow us on Instagram to stay up to date

Additional information

Weight 2 lbs
Dimensions 4 × 4 × 3 in
Type

Short Nut (5-Pack), Medium Nut (5-Pack), Long Nut (5-Pack), Wheel Stud (5-Pack)
