’80-’96 4WD BRONCO





4.5″ Over-Stock Long-Travel Extended Dana 44 Beams





























Price: $2750

 Solo Motorsports offers our Dana 44 Long-Travel TTB beams are extended 4.5” over stock.  1″ uniballs are built into the Dana 44 beams.  Both TTB beams receive full plating — top, bottom, front, and back.   The driver side beam incorporates a truss with a raised fill plug for increased strength.  Additional rear structural beam plating and gusseting strengthen the weak points of Dana 44 TTB beams.  Each beam is also Cut & Turned to allow for proper camber adjustment. Included with the beams are 1 pair of extended tie-rod adjusters and modified axles.  Both Dana 44 TTB beams bolt into the stock pivots to run either a coilover or a 4″ coil in the stock buckets.  These beams can be complimented with our W-I-Y Coilover Conversion and 1.25″ Heimed Extended Radius Arms.  Combine with coilover shocks and the wheel travel numbers add up to 19 inches of 4wd wheel travel with a 35″ tire or 17″ with a 37″ tire.

INCLUDES:

  • Dana 44 TTB Beam Plate work (top, bottom, front, & rear) and Necessary Gusset Beam work
  • Cut & Turned Dana 44 TTB Beam work for Camber
  • 1″ Uniball Beam Pivots & Machined Misalignments
  • 4340 Long & Short Extended Axles
  • Steering Connectors



OPTIONS:

  • Q80 Deaver Leaf Springs, Bushings, & U-Bolts Designed for Broncos to compliment Cut & Turned or Long-Travel Setups $925
  • Q80/F53 Shackle Conversion required $425
  • Fully-Fabricated Dana 44 TTB Pivot Brackets & Grade 8 Hardware $325
  • W-I-Y Under-The-Bed Shock Mount Kit for 10″/12″ shocks $425
  • W-I-Y Coilover Conversion to run 14″ Coilover shocks for 19″ of wheel travel $700+
  • Refundable core charge of $350 or drop off your TTBs at our shop.



Big & Little Brother Bronco II hanging out in Baja

__________________________________________________________________________________________________

Entry-Level Dana 44  Cut & Turned Beam Kit

Solo Motorsports offers our Entry-Level Cut and Turned Beam Kit is the ideal entry level performance kit not only allowing lift but wheel travel numbers significantly over stock.  Dana 44 TTB Beams are modified to allow for proper camber alignment when installing 4″ coils.  Our 1.25” Heimed Extended Radius Arms bring the vehicle’s camber back to stock, which dramatically effects performance on and off road. The kit also comes with a set of Bilstein 5100 shocks mounted behind the coil. Also included is a set of stainless brake lines. From our years of experience when your front end is apart, this is a great time to evaluate your beam pivot bushings and gear work.  Also, changing the inner front differential driver’s side seal is a must to stop any future axle seal leaks. Run up to 35” tires without front fiberglass fenders with minimal issues gaining 13″ of wheel travel.  15″ of wheel travel can be attained simply by adding our Coilover Conversion with a 12″ stroke coilover shock with Cut & Turned Dana 44 Beams.

Entry-Level Dana 44 Cut & Turned Kit

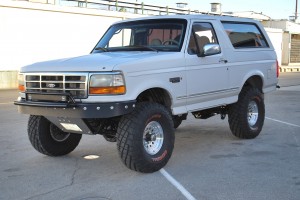

Entry-Level Cut & Turned with 35″ Tires















  Price: $1599 INCLUDES:

  • Dana 44 Cut & Turned TTB Beam Work
  • 4″ Coils
  • 1.25″ Heimed Extended Radius Arms with Pivot Brackets, Misalignments, & Grade 8 Hardware
  • 3-Pc Extended Brake Kit
  • Alignment Cams
  • Dropped Pitman Arm
  • Bilstein 5100 shocks behind the coils

* Rear 5100 Bilsteins in stock tabs $200 pr

*Refundable core charge of $350 or drop off at shop.

*Cores must be GOOD.

______________________________________________________________________________

Coilover Conversion Package

 Converting to coilover up front affords 15″ of wheel travel with an amazing ride control on and off road.  This kit includes all the necessary parts from our Entry-Level Kit minus the coils and 5100 Bilsteins along with our W-I-Y shock hoops that pick up factory holes for alignment before welding to the frame.  No fiberglass is required.  This is perfect for Bronco owners who pre-run or trail driving without the wider front end.  Again, a 12″ King/Fox is required with 90 degree fittings.

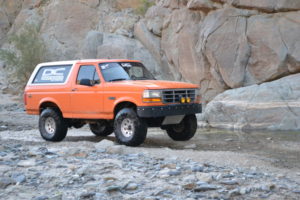

Somewhere in Baja

777 Bronco sporting Coilover Conversion w/2.5 Kings & Q80 Deavers sitting on a 35-Spline Currie Rearend



































Check out this short video of two identically built but different Broncos of which both are equiped with the Solo Motorsports Coilover Conversions with 12″ King coilovers, Cut & Turned Dana 44 TTBs with 1 1/4″ Heimed Extended Radius Arms, Q80 Deavers, Solo Motorsports Q80 Shackle Conversion with Deaver Q80s, and 12″ King 3-Tube bypass shocks connected to our W-I-Y Under-The-Bed Shock Mounts  in action!!! (Make sure you hit your Browser’s Back Button to go back to Solo Motorsports website.)

http://youtu.be/H0R06KxUJlw

NEED MORE PROOF!!

http://youtu.be/TOZ8-1l0Sj8

Special thanks to our friends/customers of Solo Motorsports and Youtube.

KIT INCLUDES:

  • Dana 44 Cut & Turned TTB Beam Work
  • 1.25″ Heimed Extended Radius Arms with Pivot Brackets, Misalignments, & Grade 8 Hardware
  • 3-Pc Extended Brake Kit
  • Alignment Cams
  • Dropped Pitman Arm
  • W-I-Y Coilover Conversion Shock Hoops

PRICE: $2060 (12″ King/Fox coilover shocks at additional cost)

ENTRY-LEVEL OR COILOVER CONVERSION OPTIONS:

  • Additional 5100 Bilsteins & Lower Weld-on lower shock mounts to run in front of the coils add $245
  • Add W-I-Y Coilover Conversion to your Entry-Level Kit to run 12″ King/Fox Coilover shocks for 15″ of wheel travel $700+
  • Q80 Deaver Leaf Springs, Bushings, & U-Bolts Designed for Broncos with Cut & Turned or Long-Travel Setups $925
  • Q80/F53 Shackle Conversion required $425
  • Fully-Fabricated Dana 44 TTB Pivot Brackets & Grade 8 Hardware $325
  • W-I-Y Under-The-Bed Shock Mount Kit to run 12″ King/Fox shocks or 14″ 5100 Bilsteins $425
  • Package Q80 Deavers, Shackle Conversion, W-I-Y Under-The-Bed Upper shock mounts $1650

_____________________________________________________________________________________

Cut & Turned TTBs Only

Sandblasted Dana 44 Cut & Turned

Price $390

We offer Cut & Turned TTB beam work only for Dana 44 and 35.  TTBs are sandblasted.  There is a refundable core charge of $350 and beams are shippable. Having said that, we prefer your striped-down TTBs back for the core so we don’t have to replenish our stock by searching at the wrecking yard.

*New pivot bushings maybe required.  We send out the TTBs with the best set of pivot bushings.

____________________________________________________________________________

1.25″ Heimed Extended Radius Arms w/Pivots



Solo Motorsports offers our 1.25″ Heimed Extended Radius Arms compliment any Cut & Turned or 4.5” Long-Travel TTB Beams.  They are used with both Entry-Level Kit or W-I-Y Coilover Conversion setups.  Construction consists of  1.75” x.120 DOM seamless tubing and 1/4″ cold-rolled steel plating.  These arms come with massive 1.25” heim joints for strength and articulation.   Expect  13” of 4wd wheel travel with our Entry-Level Cut & Turned Beam Kit  and up 17″-19” of  4wd wheel travel with our 4.5″ Long-Travel Beams depending on tire size.











Price: $ 795

INCLUDES:

  • Extended Radius Arms DOM 1.75″x.120
  • 1.25″ Heims, Misalignments, & Jam Nuts
  • Pivot Boxes & Grade 8 Hardware

_____________________________________

           W-I-Y Coilover Conversion Engine Cage

Solo Motorsports has taken the guesswork out of converting your Bronco or F-150 to a coilover front suspension. Our coilover engine cage is 80% welded in our fixture before it leaves the shop. The other 20%  of welding that’s required is done by you.  This involves welding the frame plates to the frame and welding the lower shock mounts to the Dana 44 beams. Our engine cage is constructed of 1.5”x .120 DOM seamless tubing and fully MIG welded. Each leg of the coilover engine cage picks up one to three factory holes allowing for easy frame placement before welding. Each engine cage comes with a removable crossbar for necessary structural strength. The removable crossbar come standard with 3-bolt hole flanges and can be upgraded to TIG welded machined inline clamps. Our coilover engine cage uses a 2.5” King coilover shock as the primary suspension. Additional shock tabs are available to mount a 2.5” smooth-body or bypass shock behind the coilover shock for extra suspension control. Combined with our Dana 44 Cut & Turned beams and a pair of our 1.25” Heimed Extended Radius Arms, expect 15” of wheel travel.  Running 35” tires without fiberglass fenders is not a problem. Keep in mind, this is a partially “weld-it-yourself” kit. This kit must be installed, suspension cycled, and welded correctly by someone with these skills as this product is a primary suspension component.

777 Bronco with Cut & Turned Plated Dana 44s









 Price: $700

Engine Cage w/3-bolt flange tabbed crossbar/Grade 8 Hardware  $700 Basic Kit (Mig-Welded)
Engine Cage w/Machined Inline Clamps $200 Additional

Tig-Welded Engine Cage $200 Additional

*Shown with machined inline  clamps and Tig-Welded

*Engine Cage Only Installation $700 plus alignment



_________________________________________________________________________




Q80/F53 Deaver Shackle Conversion Kit





Solo Motorsports Shackle Spring Conversion Kit will allow Bronco owners to run Q80 Deaverleaf springs. This works exceptionally well in desert and trail situations.  Q80 springs combined with longer shackles will allow for more suspension droop and articulation compared to the 3″ wide Bronco springs.  We provide 4 machined spacers to adapt the front spring hanger to accept the Q80 bushing design.  Our shackles come MIG welded and use high quality cold-rolled steel.  Depending on your driving needs, complimenting your rear suspension with our Bolt-on Rear Upper Shock-Mount Conversion Kit that’s under the bed will gain up 17″ of rear wheel travel with most any 12″ stroke 2.5/2.0″ Smooth-Body or Bypass shock.

Our Kit Includes: 1 pr Longer Shackles, 4 Delrin Bushing Halves, 2 Inner Bushing Sleeves, 4 Machined Leaf Spring Spacers to go from Bronco to F-150 Springs, 1 pr Shackle Pivot Relocation Mounts, and all Grade 8 Hardware.



 Price:$425

OPTIONS:

Rear W-I-Y Under-The-Bed Upper Shock-Mount Kit: $425

*Allows to run 12″ stroke shock under the bed floor

Q80 Deaver Springs, Bushings, & U-Bolts Only $925

Discounted Package: Q80 Deaver Springs, Bushings, U-Bolts, and Shackle Conversoin Kit: $1300

Shackles Only: $250



_______________________________________________________________________________________

W-I-Y Under-The-Bed Upper Shock Mounts for 12″ Stroke Shocks

Our W-I-Y Under-The-Bed Shock Mount allows you to run a quality shock for spring control without having to lose any interior bed space.  We provide you with two welded frame plates that pick up existing holes for easy mounting, a cross bar with shock tabs and all of the necessary hardware.  All you need to do is bolt the frame plates to the frame, slide the crossbar into place, and center and rotate crossbar into position before welding.  The factory lower shock mounts of the rear end are utilized.  Combine this with Deaver’s Q80 leaf springs and Solo Motorsports Shackle Conversion Kit and 16″ of rear wheel travel is possible. 14″ 5100 Bilsteins will work connecting to lower rearend shock tabs.



W-I-Y Kit: $425

____________________________________________________________________________________________



Fully-Fabricated Dana 44 TTB Beam Pivot Brackets

Solo Motorsports offers TTB beam pivot brackets that bolt into the stock location.  This is a must for 4.5″ Extended Beams.  However, the original intent of this product was for the Bronco owners who have drop-down kits and want to convert to Cut & Turned setups.  If you don’t have your factory pivot brackets, getting the front pivot from the wrecking yard is easy — it unbolts; however, the rear pivot is rivoted to the frame and they want you to buy that frame section.  These Fully-Fabricated Pivot Brackets are the solution.  100% bolt-on with all Grade 8 hardware included.



Price: $325

___________________________________________________________________________



Dana 44 Differential Skid Plate

Dana 44 differential skid plate bolts directly to your beam protecting the front and bottom side of your TTB.  This is a must for trail and/or desert driving. Includes Grade 8 hardware for the skid plate.





3/16″ Skid Plate









PRICE: $130
